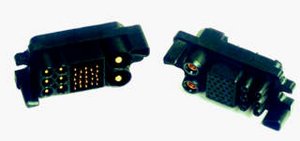

HIPO D-Series Electrical Connector DL40

Features

  • Current rating: up to 125A per contact #4
  • Guiding structure to avoid mismating and floating mounting for blind mating
  • Number of contacts: 40
  • Contact sizes: 32x #20; 6x #12; 2x #4
  • Contact length: standard, pre and post mate
  • Termination: Crimp, Solder, PCB, Screw #4
  • Plating: silver or gold
insert arrangement number size current rating plating termination Fixed/Removeable
1-6 6 12# 35A silver or gold
Crimp
Solder
PCB


removeable
removeable
fixed

7-38 32 20# 5A silver or gold
Crimp
Solder
PCB


removeable
removeable
fixed

39-40 2 4# 125A silver or gold
Crimp
Solder
PCB


removeable
removeable
fixed
