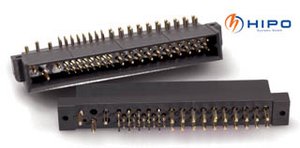

HIPOwer Compact PCI Connector

Features

  • No. of contacts: 38 + 47 others upon request
  • High current density: 23A / 250V per contact
  • Hot swapping by various contact length
  • Avoid mismating by built in polarisation housing
  • Board to board and cable to board application
  • Crimp, PCB solder and press fit termination

Specifications

Materials Contacts High conductivity copper alloy
Plating Gold over Nickel
Electrical Insulator Glass reinforced polyester, UL 94V-0, red
Insulation resistance 5000 MΩ
Contact resistance size #20 ≥ 5,0 mΩ size #16 ≥ 2,5 mΩ
Current rating size #20 up to 5A nominal size #16 up to 23A nominal
Mechanical Contact Withdrawal force size #20; 0,4 – 2N per Contact size #16; 0,3 – 1N per Contact
Working Temperature -55 °C to +125°C
